S360M
Le système de fixation photovoltaïque repris dans la panne le plus polyvalent
S360M est un système de fixation prévu pour la pose de panneaux photovoltaïques sur toitures inclinées. Il est dédié aux bâtiments dont la toiture est en couverture sèche (bac acier avec profil trapézoïdal).
ETN N°A27T2208
Bac secs
Pose paysage
Documentations & Téléchargements
Valider la compatibilité
Télécharger la notice
Télécharger l'évaluation technique
Demander un service
Les + du S360M
Les avantages du système
Un système de fixation intelligent pour une installation durable

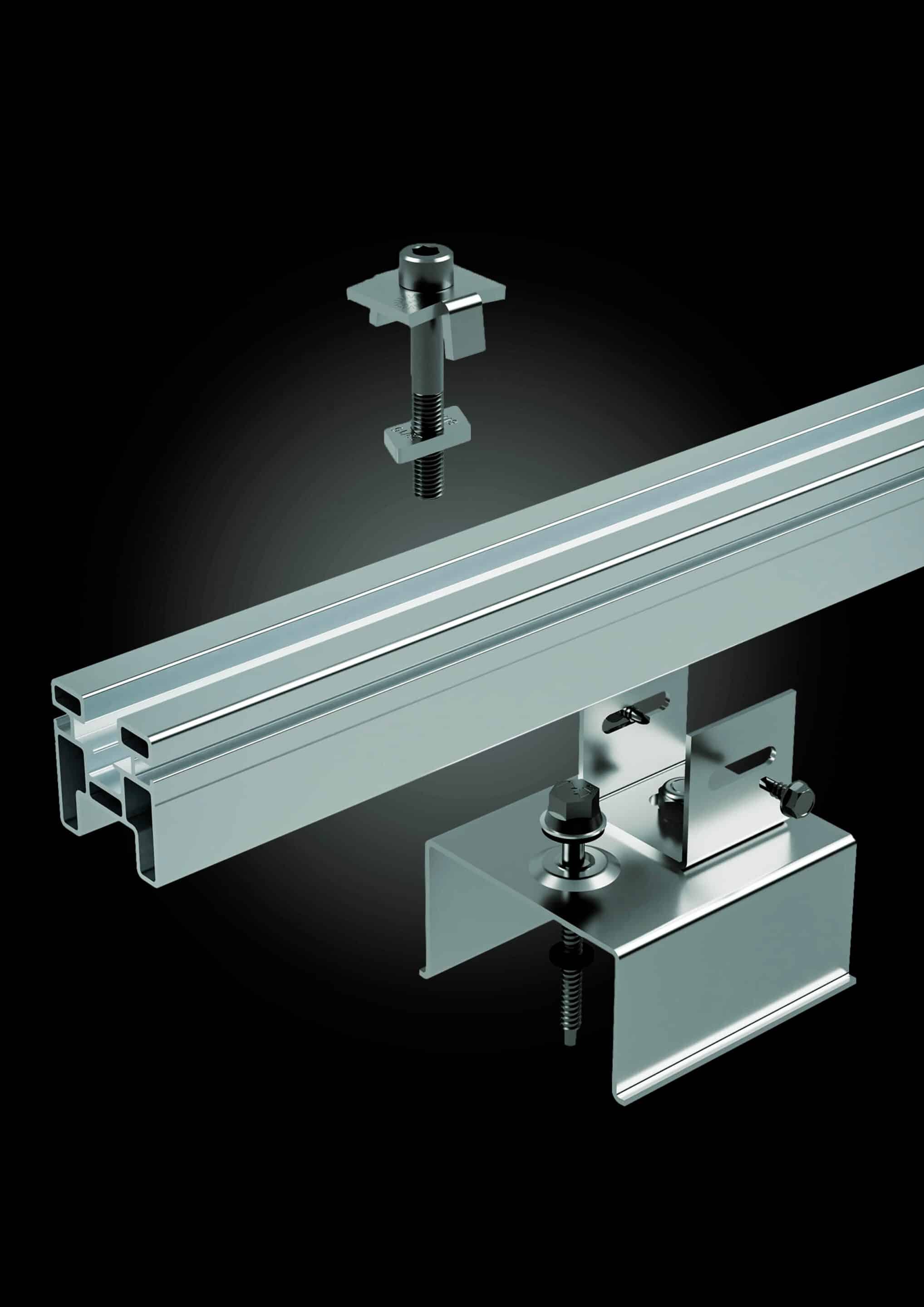

La fixation photovoltaïque S360M vient se fixer directement sur les pannes du bâtiment, ce qui permet de réduire les risques d’infiltration d’eau et d’optimiser l’étanchéité de la toiture. En outre, c’est un système qui favorise la descente uniforme des charges sur les pannes, ce qui garantit la sécurité de l’installation photovoltaïque, quel que soit l’environnement.
Un domaine d'emploi très large
Grâce à ses composants sur mesure, le système d’intégration S360M s’adapte à presque tous types de toitures et couvertures. Une grande polyvalence qui le rend compatible avec un large éventail de projets.
Une solution pérenne
Le système de fixation photovoltaïque S360M offre une durabilité à toute épreuve grâce à sa composition alu/inox. Ces matériaux de qualité offrent une grande robustesse et résistance à la corrosion. De quoi garantir la longévité de votre installation, y compris dans les environnements les plus difficiles.
S360M
Caractéristiques techniques
| UTILISATION | Toiture neuve ou rénovation, totale ou partielle |
| COUVERTURE | Bac acier hauteur d’onde entre 33 et 45 mm, tous profils de forme trapézoïdale, épaisseur minimum 63/100 Bac ASTRON LPR 1000 |
| ORIENTATION DU MODULE | Paysage |
| POIDS DU SYSTÈME | 2 kg/m² |
| STRUCTURE PORTEUSE | Entraxes pannes jusqu’à 2.10 m (bois ou acier) |
| COMPOSANTS DU SYSTÈME | Platines inox 304L ou 316L (suivant environnement) Rails aluminium 6060 T6 longueur sur mesure Brides inox 304L ou 316L (suivant environnement), assemblées en usine Brides centrales assurant la mise à la terre au serrage Vis Zamac pour fixation des platines |
| OPTION | Connecteur Terre Module (CTM) aluminium 6060 |
Bénéficiez d’une formation et d’une assistance premier chantier
Nos experts vous partagent astuces et conseils pratiques pour une pose rapide et efficace
Fiabilité évaluée pour vos projets photovoltaïques
Découvrez par vous même la qualité de notre fixation S360M, évaluée ETN.
Nous garantissons la conformité de nos produits, minimisant les risques de sinistres pour une tranquillité d’esprit totale.
Menez à bien vos projets photovoltaïques en toute confiance avec Dome Solar.
Évaluation technique ETN
Réduction des sinistres
Conseils d'installation
Découvrez tous nos produits
Nouveau catalogue Dome Solar
Les modules photovoltaïques évalués avec S360M
| ID | Evaluations techniques | Fabricant | Nom du module | Longueur | Largeur | Épaisseur | Classe de puissance (WC) | Référence |
|---|---|---|---|---|---|---|---|---|
| S360M-0089 | ETN | TONGWEI | TNC 2.0 TWMNH-48HDxxx | 1762 | 1134 | 30 | 445/450/455/460/465 | A27T2208 ind11 |
| S360M-0080 | ETN | JINKO | JKMxxxN-48HL4M-BDV | 1762 | 1134 | 30 | 445/450/455/460/465/470 | A27T2208 ind08 |
| S360M-0081 | ETN | JINKO | JKMxxxN-48HL4M-DB | 1762 | 1134 | 30 | 450/455/460/465 | A27T2208 ind08 |
| S360M-0082 | ETN | JINKO | JKMxxxN-48HL4M-DV | 1762 | 1134 | 30 | 450/455/460/465/470 | A27T2208 ind08 |
| S360M-0083 | ETN | JINKO | JKMxxxN-54HL4M-BDV | 1961 | 1134 | 30 | 495/500/505/510/515/520/525 | A27T2208 ind08 |
| S360M-0084 | ETN | JINKO | JKMxxxN-60HL4-V | 1906 | 1134 | 30 | 475/480/485/490/495/500 | A27T2208 ind08 |
| S360M-0085 | ETN | JINKO | JKMxxxM-60HL4-V | 1903 | 1134 | 30 | 450/455/460/465/470 | A27T2208 ind08 |
| S360M-0086 | ETN | LONGI | LR8-48HGD-xxxM | 1762 | 1134 | 30 | 430/435/440/445/450/455 | A27T2208 ind10 |
| S360M-0087 | ETN | LONGI | LR7-54HVH-xxxM | 1800 | 1134 | 30 | 475/480/485/490 | A27T2208 ind10 |
| S360M-0088 | ETN | TONGWEI | TWMNH-48HDxxx | 1762 | 1134 | 30 | 435/440/445/450/455 | A27T2208 ind11 |
| S360M-0079 | ETN | JINKO | JKMxxxN-54HL4R-V | 1762 | 1134 | 30 | 435/440/445/450/455/460 | A27T2208 ind08 |
| S360M-0078 | ETN | DMEGC | DMxxxM10RT-B54HSW | 1762 | 1134 | 30 | 445/450/455/460 | A27T2208 ind07 |
| S360M-0077 | ETN | DMEGC | DMxxxM10RT-54HBW-V | 1762 | 1134 | 30 | 440/445/450 | A27T2208 ind05 |
| S360M-0076 | ETN | DMEGC | DMxxxM10RT-54HSW-V | 1762 | 1134 | 30 | 440/445/450 | A27T2208 ind05 |
| S360M-0075 | ETN | JINKO | JKMxxxN-54HL4R-BDV | 1762 | 1134 | 30 | 420/425/430/435/440 | A27T2208 ind04 |
| S360M-0074 | ETN | JINKO | JKMxxxM-54HL4-V | 1722 | 1134 | 30 | 400/405/410/415/420 | A27T2208 ind04 |
| S360M-0073 | ETN | JINKO | JKMxxxN-60HL4-V | 1906 | 1134 | 30 | 470/475/480/485/490 | A27T2208 ind04 |
| S360M-0072 | ETN | JINKO | JKMxxxN-54HL4R-B | 1762 | 1134 | 30 | 425/430/435/440/445 | A27T2208 ind04 |
| S360M-0071 | ETN | JINKO | JKMxxxN-54HL4R-V | 1762 | 1134 | 30 | 425/430/435/440/445/450 | A27T2208 ind04 |
| S360M-0070 | ETN | TRINA | TSM-xxxNEG9R.28 | 1762 | 1134 | 30 | 425/430/435/440/445/450 | A27T2208 ind03 |
| S360M-0068 | ETN | JA | JAM54D40-xxx/LB | 1762 | 1134 | 30 | 430/435/440/445/450 | A27T2208 ind02 |
| S360M-0069 | ETN | JA | JAM54D41-xxx/LB | 1762 | 1134 | 30 | 430/435/440 | A27T2208 ind02 |
| S360M-0067 | ETN | JA | JAM54S31-xxx/LR | 1762 | 1134 | 30 | 415/420 | A27T2208 ind02 |
| S360M-0066 | ETN | JA | JAM54S30-xxx/LR | 1762 | 1134 | 30 | 415/420/425/430/435 | A27T2208 ind02 |
| S360M-0065 | ETN | LONGI | LR4-60HIH-xxxM | 1755 | 1038 | 30 | 365/370/375/380 | A27T2208 ind01 |
| S360M-0064 | ETN | TRINA | TSM-xxxDE09.08 | 1754 | 1096 | 30 | 390/395/400/405 | A27T2208 ind0 |
| S360M-0063 | ETN | SUNPOWER | SPR-P3-xxx-COM-1500 | 2066 | 998 | 35 | 405/410/415/420 | A27T2208 ind0 |
| S360M-0058 | ETN | DMEGC | DMxxxG1-60HSW | 1684 | 1002 | 35 | 325/330/335/340 | 010T180Y ind06 |
| S360M-0059 | ETN | LONGI | LR4-60HPH-xxxM | 1755 | 1038 | 35 | 350/355/360/365/370/375 | 010T180Y ind07 |
| S360M-0060 | ETN | LONGI | LR4-60HBD-xxxM | 1755 | 1038 | 30 | 350/355/360/365/370/375 | 010T180Y ind07 |
| S360M-0061 | ETN | GCL | GCL-xxxM8/60H | 1755 | 1038 | 35 | 375/380/385 | A27T2208 ind0 |
| S360M-0062 | ETN | GCL | GCL-xxxM8/60H | 1766 | 1048 | 35 | 375/380/385 | A27T2208 ind0 |
| S360M-0057 | ETN | SUNPOWER | SPR-MAX3-xxx-COM | 1690 | 1046 | 40 | 390/395/400 | 010T180Y ind05 |
| S360M-0056 | ETN | JA | JAM60S10-xxx/MR | 1689 | 996 | 35 | 325/330/335 | 010T180Y ind04 |
| S360M-0055 | ETN | JA | JAM60S10-xxx/PR | 1689 | 996 | 35 | 320/325/330/335/340 | 010T180Y ind04 |
| S360M-0054 | ETN | VOLTEC | TARKA 120HC VSMS | 1685 | 1000 | 42 | 315/320/325 | 010T180Y ind03 |
| S360M-0053 | ETN | QCELLS | Q.PEAK DUO G7 xxx | 1685 | 1000 | 32 | 325/330/335 | 010T180Y ind02 |
| S360M-0052 | ETN | QCELLS | Q.PEAK DUO BLK G6 xxx | 1740 | 1030 | 32 | 330/335/340/345 | 010T180Y ind02 |
| S360M-0051 | ETN | QCELLS | Q.PEAK DUO G6 xxx | 1740 | 1030 | 32 | 340/345 | 010T180Y ind02 |
| S360M-0050 | ETN | QCELLS | Q.PEAK DUO BLK G5 xxx | 1685 | 1000 | 32 | 310/315/320/325 | 010T180Y ind02 |
| S360M-0049 | ETN | QCELLS | Q.PEAK DUO G5 xxx | 1685 | 1000 | 32 | 315/320/325/330/335 | 010T180Y ind02 |
| S360M-0046 | ETN | QCELLS | Q.PEAK BLK G4.1 xxx | 1670 | 1000 | 32 | 290/295/300/305 | 010T180Y ind01 |
| S360M-0047 | ETN | QCELLS | Q.PEAK G4.4 xxx | 1670 | 1000 | 32 | 295/300/305/310/315 | 010T180Y ind01 |
| S360M-0048 | ETN | QCELLS | Q.PEAK G5.1 xxx | 1670 | 1000 | 32 | 305/310/315 | 010T180Y ind01 |
| S360M-0045 | ETN | QCELLS | Q.PEAK G4.1 xxx | 1670 | 1000 | 32 | 300/305/310/315/320 | 010T180Y ind01 |
| S360M-0044 | ETN | QCELLS | Q.PLUS G4.3 xxx | 1670 | 1000 | 32 | 270/275/280/285/290 | 010T180Y ind01 |
| S360M-0043 | ETN | YINGLI | YLxxxP-29b | 1640 | 990 | 35 | 200/205/210/215/220/225/230/235/240/245/250/255/260/265 | 010T180Y ind0 |
| S360M-0042 | ETN | VOLTEC | Tarka 60 VSMS | 1660 | 998 | 42 | 270/275/280/285/290/295/300 | 010T180Y ind0 |
| S360M-0041 | ETN | VOLTEC | Tarka 60 VSPS | 1660 | 998 | 42 | 260/265/270/275 | 010T180Y ind0 |
| S360M-0040 | ETN | VMH ENERGIES | xxx-6-60-P | 1648 | 992 | 40 | 270/275/280 | 010T180Y ind0 |
| S360M-0039 | ETN | UPSOLAR | 60-UP-MxxxP | 1640 | 992 | 40 | 225/230/235/240/245/250/255/260/265/270/275 | 010T180Y ind0 |
| S360M-0038 | ETN | TRINA | TSM-xxxPD05 | 1650 | 992 | 35 | 255/260/265 | 010T180Y ind0 |
| S360M-0037 | ETN | TALESUN | TP660P-xxx | 1640 | 990 | 35 | 255/260/265/270/275/280/285 | 010T180Y ind0 |
| S360M-0036 | ETN | SYSTOVI | V-SYS PRO PS19xxxN14 | 16475 | 9875 | 35 | 285/290/295/300 | 010T180Y ind0 |
| S360M-0035 | ETN | SUNPOWER | SPR-X21-460-COM | 2067 | 1046 | 46 | 460 | 010T180Y ind0 |
| S360M-0032 | ETN | SUNPOWER | SPR-X21-xxx-BLK | 1559 | 1046 | 46 | 335 | 010T180Y ind0 |
| S360M-0033 | ETN | SUNPOWER | SPR-X22-360-COM | 1559 | 1046 | 46 | 360 | 010T180Y ind0 |
| S360M-0034 | ETN | SUNPOWER | SPR-E20-xxx-COM | 2067 | 1046 | 46 | 435 | 010T180Y ind0 |
| S360M-0031 | ETN | SUNPOWER | SPR-X21-xxx | 1559 | 1046 | 46 | 335/340/345 | 010T180Y ind0 |
| S360M-0030 | ETN | SUNPOWER | SPR-X20-xxx | 1559 | 1046 | 46 | 327 | 010T180Y ind0 |
| S360M-0029 | ETN | SUNPOWER | SPR-E20-xxx-COM | 1559 | 1046 | 46 | 327 | 010T180Y ind0 |
| S360M-0028 | ETN | SUNPOWER | SPR-E19-xxx-COM | 1559 | 1046 | 46 | 310 | 010T180Y ind0 |
| S360M-0027 | ETN | SUNPOWER | SPR-E20-xxx | 1559 | 1046 | 46 | 327 | 010T180Y ind0 |
| S360M-0023 | ETN | SOLARWORLD | Sunmodule Plus SWxxxP | 1675 | 1001 | 33 | 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 | 010T180Y ind0 |
| S360M-0024 | ETN | SOLVIS | SV60 | 1640 | 992 | 35 | 270/275/280/285 | 010T180Y ind0 |
| S360M-0026 | ETN | SUNPOWER | SPR-E19-xxx | 1559 | 1046 | 46 | 320 | 010T180Y ind0 |
| S360M-0025 | ETN | SOLVIS | SV60 | 1640 | 992 | 40 | 270/275/280/285 | 010T180Y ind0 |
| S360M-0022 | ETN | SOLARWATT | Vision 60M Style | 1680 | 990 | 40 | 260/265/270/275 | 010T180Y ind0 |
| S360M-0021 | ETN | SOLARWATT | Vision 60P Style | 1680 | 990 | 40 | 250/255/260/265/270/275/280/285 | 010T180Y ind0 |
| S360M-0020 | ETN | SOLARWATT | Vision 60P | 1680 | 990 | 40 | 250/255/260 | 010T180Y ind0 |
| S360M-0019 | ETN | SOLARWATT | Blue 60Pxxx | 1680 | 990 | 40 | 250/255/260/265 | 010T180Y ind0 |
| S360M-0018 | ETN | RECOM SILLIA | 60Pxxx | 1660 | 990 | 40 | 250/255/260/265/270 | 010T180Y ind0 |
| S360M-0017 | ETN | QCELLS | Q.PLUS G4.3 xxx | 1670 | 1000 | 32 | 270/275/280 | 010T180Y ind0 |
| S360M-0016 | ETN | QCELLS | Q.PLUS BFR G4.1 xxx | 1670 | 1000 | 32 | 270/275/280/285 | 010T180Y ind0 |
| S360M-0013 | ETN | PHOTOWATT | PW2350F | 1685 | 993 | 40 | 240/245/250/255 | 010T180Y ind0 |
| S360M-0014 | ETN | PHOTOWATT | PW2450F | 1685 | 993 | 40 | 260/265/270/275/280 | 010T180Y ind0 |
| S360M-0015 | ETN | PHOTOWATT | PW2500F | 1685 | 993 | 40 | 270/275/280/285/290 | 010T180Y ind0 |
| S360M-0012 | ETN | CSUN | CSUNxxx-60M | 1640 | 990 | 35 | 275/280/285/290/295 | 010T180Y ind0 |
| S360M-0011 | ETN | CSUN | CSUNxxx-60P | 1640 | 990 | 35 | 230/235/240/245/250/255/260/265/270/275 | 010T180Y ind0 |
| S360M-0010 | ETN | CANADIAN | CS6P-xxxP | 1638 | 982 | 40 | 250/255/260/265/270 | 010T180Y ind0 |
| S360M-0009 | ETN | BISOL | BMU-xxx | 1649 | 991 | 40 | 250/255/260/265/270 | 010T180Y ind0 |
| S360M-0008 | ETN | BENQ-AUO | PM060MB2_xxx | 1640 | 992 | 40 | 275/280/285/290/295/300/305/310 | 010T180Y ind0 |
| S360M-0007 | ETN | BENQ-AUO | PM060PW1_xxx | 1640 | 992 | 40 | 250/255/260/265/270 | 010T180Y ind0 |
| S360M-0006 | ETN | BENQ-AUO | PM096B00_xxx | 1559 | 1046 | 46 | 325/330/335 | 010T180Y ind0 |
| S360M-0005 | ETN | BENQ-AUO | PM060MW2_xxx | 1640 | 992 | 40 | 275/280/285/290/295/300/305/310 | 010T180Y ind0 |
| S360M-0001 | ETN | BENQ-AUO | PM060PW0_xxx | 1640 | 992 | 40 | 250/255/260/265 | 010T180Y ind0 |
| S360M-0004 | ETN | BENQ-AUO | PM060PW0_xxx | 1640 | 992 | 40 | 250/255/260/265 | 010T180Y ind0 |
| S360M-0003 | ETN | BENQ-AUO | PM096B00_xxx | 1559 | 1046 | 46 | 325/330/335 | 010T180Y ind0 |
| S360M-0002 | ETN | BENQ-AUO | PM060MW2_xxx | 1640 | 992 | 40 | 275/280/285 | 010T180Y ind0 |
