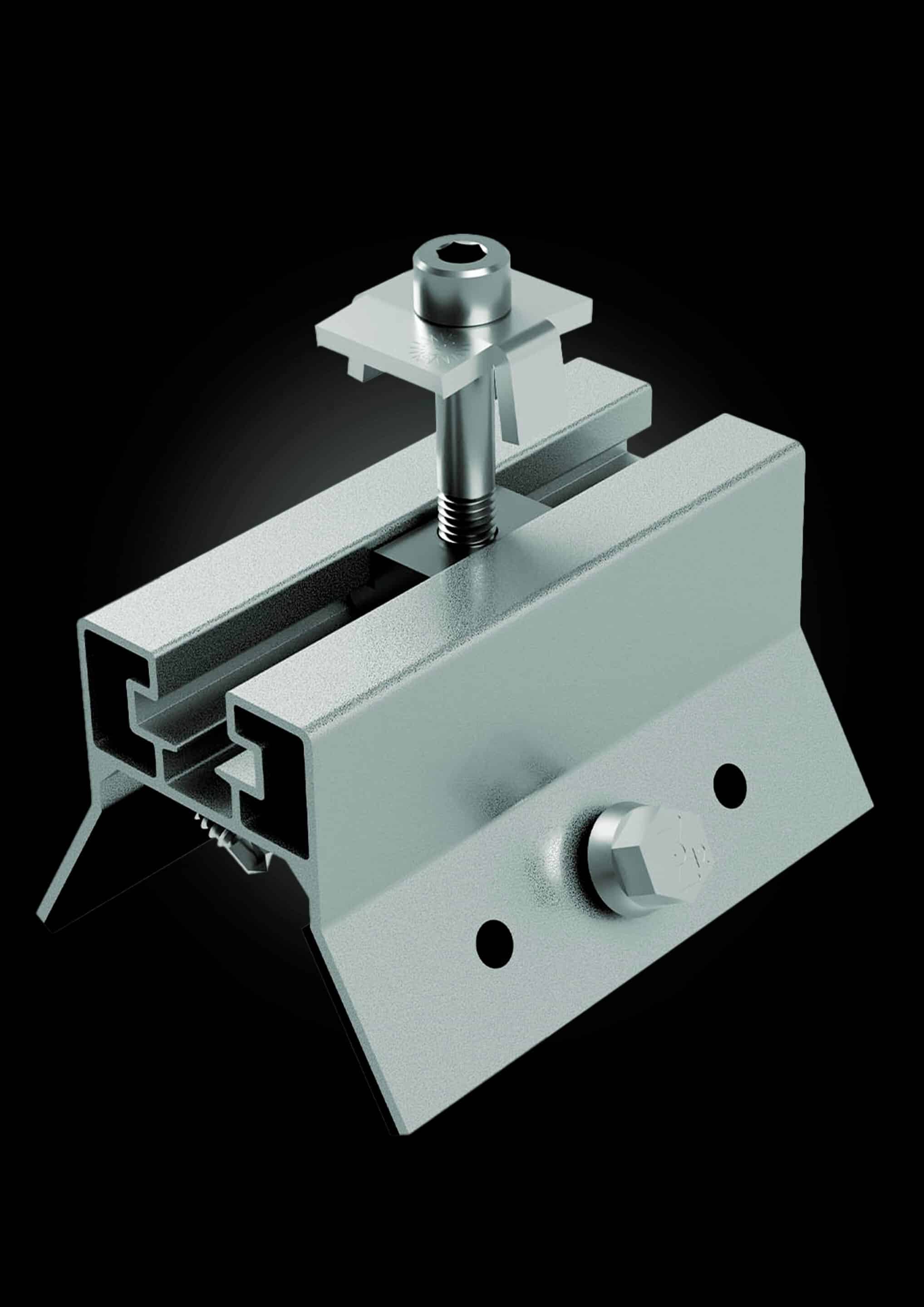

NPA 3.45
Le système de fixation photovoltaïque économique sans compromis sur la performance
Le système de fixation photovoltaïque NPA 3.45 est prévu pour la pose de panneaux photovoltaïques sur toitures inclinées. Particulièrement adaptée pour les bâtiments à toiture en couverture sèche (bac acier avec profil trapézoïdal), cette solution est évaluée par une Enquête de Technique Nouvelle (ETN).
ETN N°A27T220I
Bac secs
Pose paysage
Documentations & Téléchargements
Valider la compatibilité
Télécharger la notice
Télécharger l'évaluation technique
Demander un service
Les + du NPA 3.45
Les avantages du système
Une solution polyvalente et facile à installer
Adapté pour un large domaine d’emploi, notre système de fixation NPA 3.45 est idéal pour vos projets photovoltaïques en toitures inclinées. Son installation est grandement facilitée grâce aux pièces pré-assemblées et pré-percées pour deux à quatre vis selon l’environnement d’accueil (zones neigeuses ou venteuses). Un système ingénieux pour une pose rapide et sécurisée.
Une technologie sous évaluation
Le système de fixation NPA 3.45 a été testé et approuvé par une Enquête de Technique Nouvelle (ETN). Il a subi une batterie de tests pour mettre à l’épreuve sa résistance mécanique et son étanchéité, afin de garantir sa performance dans des environnements variés. Une solution efficace et éprouvée pour vos projets d’installation photovoltaïque.
Des matériaux de qualité prémium
NPA 3.45 est conçu en aluminium et en inox, des métaux reconnus et appréciés pour leur grande durabilité et résistance face à la corrosion. Grâce à la légèreté et la robustesse de cette fixation, la mise en œuvre est facilitée et votre installation entièrement sécurisée.
NPA 3.45
Caractéristiques techniques
| UTILISATION | Toiture neuve ou rénovation, totale ou partielle |
| COUVERTURE | Bac acier 3.45, épaisseur minimum 63/100 |
| ORIENTATION DU MODULE | Paysage |
| POIDS DU SYSTÈME | < 1 kg/m² |
| STRUCTURE PORTEUSE | Entraxes pannes jusqu’à 2 m (bois ou acier) |

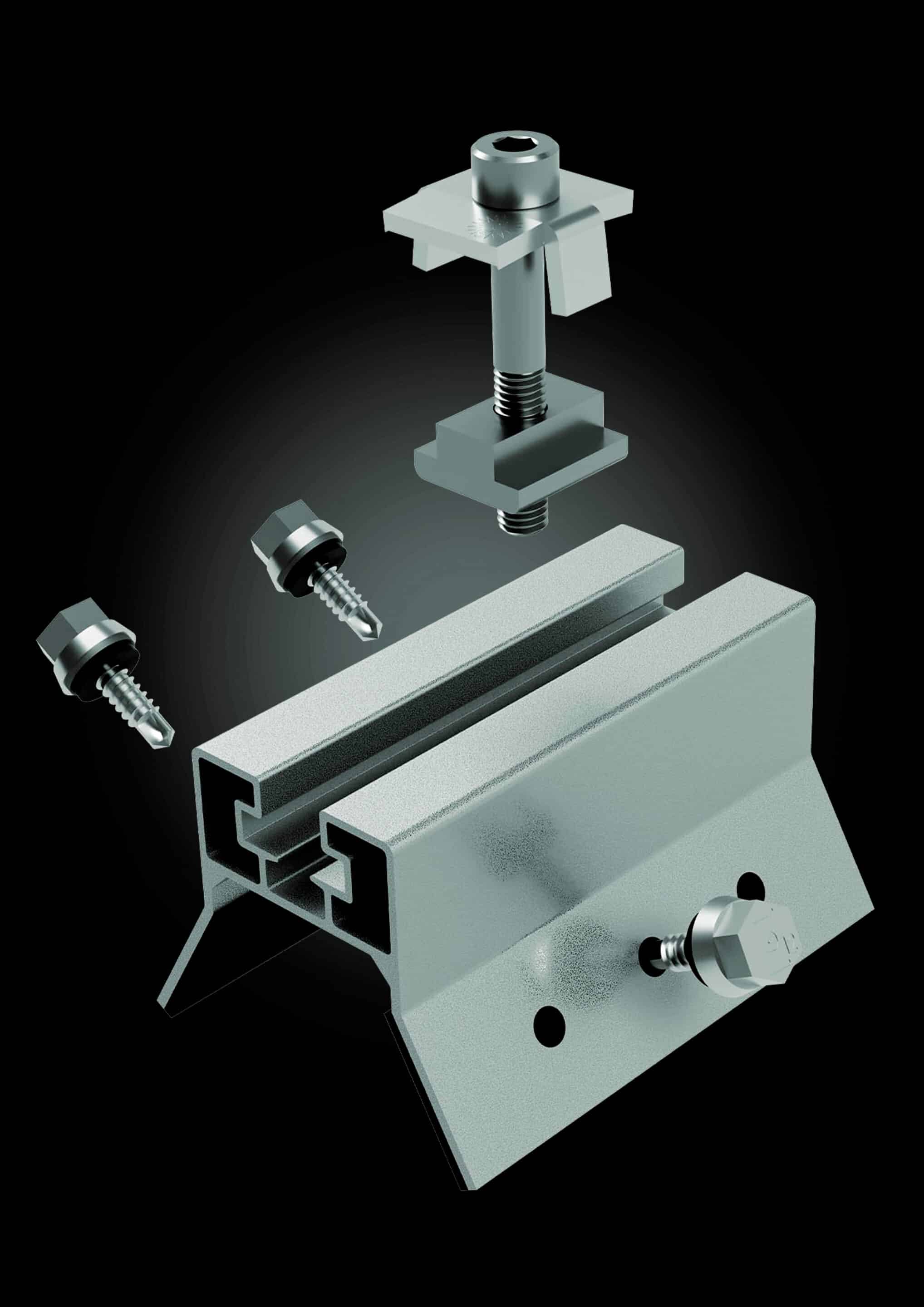

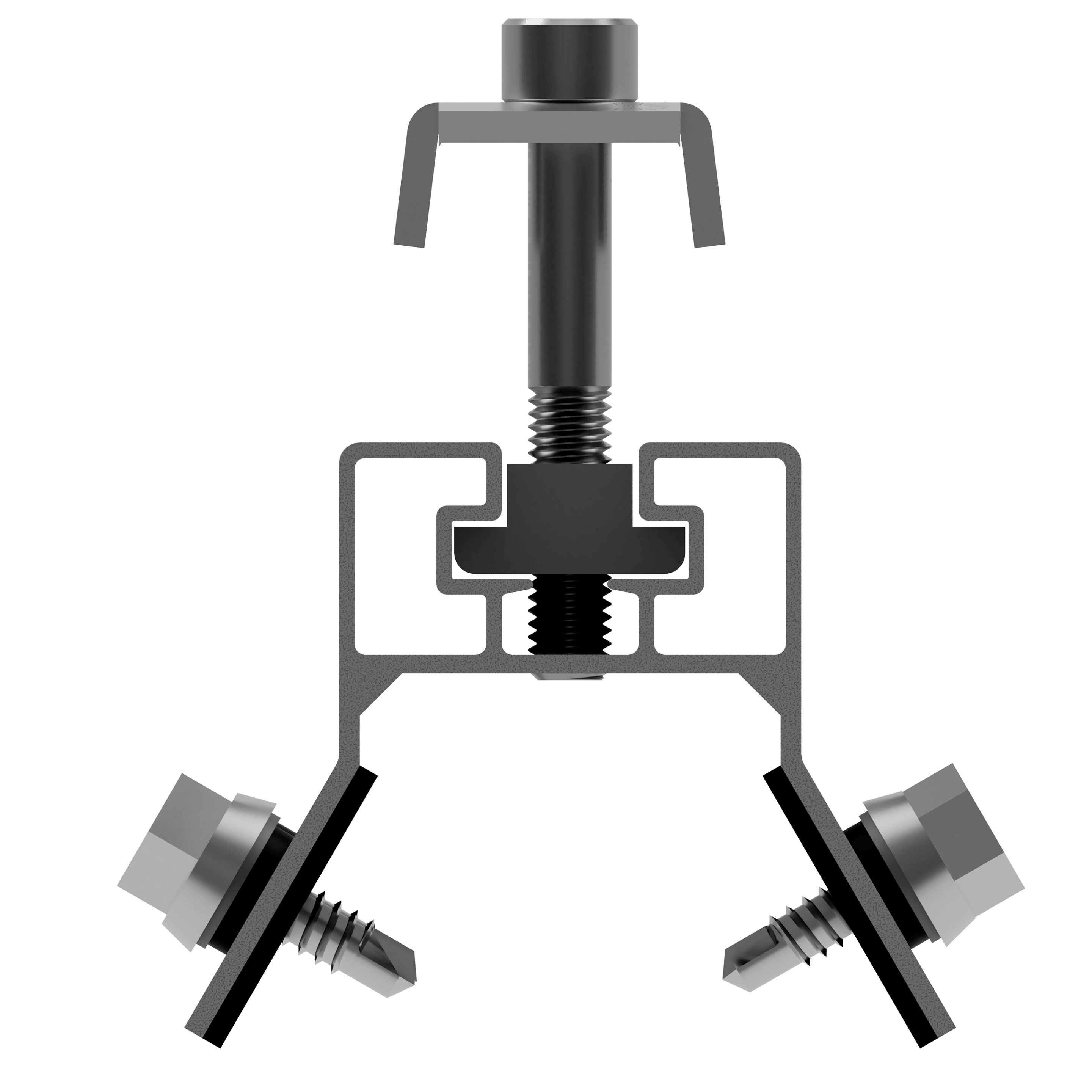

| COMPOSANTS DU SYSTÈME |
Platines Aluminium 6060 T6 + joints EPDM Brides Inox 304L ou 316L (suivant environnement), assemblées en usine Brides centrales assurant la mise à la terre au serrage Vis Zamac pour fixation des platines |
| OPTION | Connecteur Terre Module (CTM) aluminium 6060 |
Bénéficiez d’une formation et d’une assistance premier chantier
Nos experts vous partagent astuces et conseils pratiques pour une pose rapide et efficace
Fiabilité évaluée pour vos projets photovoltaïques
Découvrez par vous même la qualité de notre fixation NPA 3.45, évaluée ETN.
Nous garantissons la conformité de nos produits, minimisant les risques de sinistres pour une tranquillité d’esprit totale.
Menez à bien vos projets photovoltaïques en toute confiance avec Dome Solar.
Évaluation technique ETN
Réduction des sinistres
Conseils d'installation
Découvrez tous nos produits
Nouveau catalogue Dome Solar
Les modules photovoltaïques évalués avec NPA 3.45
| ID | Evaluations techniques | Fabricant | Nom du module | Longueur | Largeur | Épaisseur | Classe de puissance (WC) | Référence |
|---|---|---|---|---|---|---|---|---|
| NPA345-0179 | ETN | JINKO | JKMxxxN-48HL4M-DV | 1762 | 1134 | 30 | 450/455/460/465/470 | A27T2507 ind01 |
| NPA345-0180 | ETN | JINKO | JKMxxxN-54HL4M-BDV | 1961 | 1134 | 30 | 495/500/505/510/515/520/525 | A27T2507 ind01 |
| NPA345-0181 | ETN | JINKO | JKMxxxN-60HL4-V | 1906 | 1134 | 30 | 475/480/485/490/495/500 | A27T2507 ind01 |
| NPA345-0182 | ETN | JINKO | JKMxxxM-60HL4-V | 1903 | 1134 | 30 | 450/455/460/465/470 | A27T2507 ind01 |
| NPA345-0183 | ETN | DUONERGY | DN-BT108N-4 | 1762 | 1134 | 30 | 450 | A27T2507 ind02 |
| NPA345-0176 | ETN | JINKO | JKMxxxN-54HL4R-V | 1762 | 1134 | 30 | 435/440/445/450/455/460 | A27T2507 ind01 |
| NPA345-0177 | ETN | JINKO | JKMxxxN-48HL4M-BDV | 1762 | 1134 | 30 | 445/450/455/460/465/470 | A27T2507 ind01 |
| NPA345-0178 | ETN | JINKO | JKMxxxN-48HL4M-DB | 1762 | 1134 | 30 | 450/455/460/465 | A27T2507 ind01 |
| NPA345-0171 | ETN | JA | JAM54D40-xxx/LB | 1762 | 1134 | 30 | 430/435/440/445/450 | A27T220I ind39 |
| NPA345-0172 | ETN | JA | JAM54D40-xxx/LB | 1762 | 1134 | 30 | 430/435/440/445/450 | A27T220I ind39 |
| NPA345-0173 | ETN | JA | JAM54S40-xxx/LR | 1762 | 1134 | 30 | 430/435/440/445/450 | A27T220I ind39 |
| NPA345-0174 | ETN | JA | JAM60D40-xxx/LB | 1953 | 1134 | 30 | 485/490/495/500 | A27T220I ind39 |
| NPA345-0175 | ETN | JA | JAM60D42-xxx/LB | 2063 | 1134 | 30 | 505/510/515/520/525 | A27T220I ind39 |
| NPA345-0169 | ETN | CANADIAN | TOPHiKu6 CS6.2-48TD-xxx ALL BLACK | 1762 | 1134 | 30 | 430/435/440/445/450/455 | A27T220I ind38 |
| NPA345-0170 | ETN | CANADIAN | TOPHiKu6 CS6.2-48TD-xxx | 1762 | 1134 | 30 | 435/440/445/450/455/460 | A27T220I ind38 |
| NPA345-0167 | ETN | LONGI | LR7-60HTH-xxxM | 1990 | 1134 | 30 | 505/510/515 | A27T220I ind37 |
| NPA345-0168 | ETN | LONGI | LR7-60HTB-xxxM | 1990 | 1134 | 30 | 500/505/510/515/520 | A27T220I ind37 |
| NPA345-0165 | ETN | LONGI | LR7-54HTH-xxxM | 1800 | 1134 | 30 | 455/460/465 | A27T220I ind37 |
| NPA345-0166 | ETN | LONGI | LR7-54HTB-xxxM | 1800 | 1134 | 30 | 450/455/460/465/470 | A27T220I ind37 |
| NPA345-0162 | ETN | ECO GREEN ENERGY | EGE-xxx-132N(GM10) | 2094 | 1134 | 30 | 520/525/530/535/540 | A27T220I ind35 |
| NPA345-0163 | ETN | TRINA | TSM-xxxNEGRC.27 | 1762 | 1134 | 30 | 425/430/435/440/445/450 | A27T220I ind36 |
| NPA345-0164 | ETN | TRINA | TSM-xxxNEG18R.28 | 1961 | 1134 | 30 | 485/490/495/500/505/510 | A27T220I ind36 |
| NPA345-0158 | ETN | ECO GREEN ENERGY | EGE-xxx-108N(GM10) | 1724 | 1134 | 30 | 420/425/430/435/440 | A27T220I ind35 |
| NPA345-0159 | ETN | ECO GREEN ENERGY | EGE-xxx-96N(GM10R) | 1762 | 1134 | 30 | 435/440/445/450/455 | A27T220I ind35 |
| NPA345-0160 | ETN | ECO GREEN ENERGY | EGE-xxx-120N(GM10) | 1910 | 1134 | 30 | 470/475/480/485/490 | A27T220I ind35 |
| NPA345-0161 | ETN | ECO GREEN ENERGY | EGE-xxx-108N(GM10R) | 1961 | 1134 | 30 | 490/495/500/505/510 | A27T220I ind35 |
| NPA345-0156 | ETN | DMEGC | DMxxxM10RT-G54HBW | 1762 | 1134 | 30 | 460 | A27T220I ind34 |
| NPA345-0157 | ETN | DMEGC | DMxxxM10RT-B60HBT | 1950 | 1134 | 30 | 505/510/515 | A27T220I ind34 |
| NPA345-0153 | ETN | DMEGC | DMxxxM10RT-54HBW-V | 1762 | 1134 | 30 | 445/450/455 | A27T220I ind34 |
| NPA345-0154 | ETN | DMEGC | DMxxxM10RT-B54HBT | 1762 | 1134 | 30 | 455/460 | A27T220I ind34 |
| NPA345-0155 | ETN | DMEGC | DMxxxM10RT-B54HBW | 1762 | 1134 | 30 | 455/460 | A27T220I ind34 |
| NPA345-0151 | ETN | VOLTEC | TARKA 120 VSMP xxx | 1868 | 1170 | 35 | 475/480/485/490/495/500 | A27T220I ind33 |
| NPA345-0152 | ETN | VOLTEC | TARKA 120 VSBP xxx | 1868 | 1170 | 35 | 475/480/485/490/495/500 | A27T220I ind33 |
| NPA345-0149 | ETN | VOLTEC | TARKA 110 VSMP xxx | 1868 | 1070 | 35 | 435/440/445/450/455/460 | A27T220I ind33 |
| NPA345-0150 | ETN | VOLTEC | TARKA 110 VSBP xxx | 1868 | 1070 | 35 | 435/440/445/450/455/460 | A27T220I ind33 |
| NPA345-0147 | ETN | DAS | DAS-DH96NE-xxx | 1762 | 1134 | 30 | 425/430/435/440/445/450 | A27T220I ind32 |
| NPA345-0148 | ETN | DAS | DAS-DH108NE-xxx | 1960 | 1134 | 30 | 485/490/495/500/505 | A27T220I ind32 |
| NPA345-0146 | ETN | DUALSUN | DSTFxxx-108M10TB-03 | 1722 | 1134 | 30 | 420/425 | A27T220I ind31 |
| NPA345-0143 | ETN | DUALSUN | DSxxx-132M10-01 | 2094 | 1134 | 35 | 500 | A27T220I ind30 |
| NPA345-0144 | ETN | DUALSUN | DSTIxxx-108M10TB-03 | 1722 | 1134 | 30 | 420/425 | A27T220I ind31 |
| NPA345-0145 | ETN | DUALSUN | DSTNxxx-108M10TB-03 | 1722 | 1134 | 30 | 420/425 | A27T220I ind31 |
| NPA345-0140 | ETN | DUALSUN | DSxxx-108M10TB-03 | 1722 | 1134 | 30 | 410/415/420/425 | A27T220I ind30 |
| NPA345-0141 | ETN | DUALSUN | DSxxx-108M10RTB-03 | 1762 | 1134 | 30 | 440/445/450 | A27T220I ind30 |
| NPA345-0142 | ETN | DUALSUN | DSxxx-120M10TB-03 | 1950 | 1134 | 30 | 500 | A27T220I ind30 |
| NPA345-0138 | ETN | DMEGC | DMxxxM10RT-B54HST | 1762 | 1134 | 30 | 435/440/445/450 | A27T220I ind29 |
| NPA345-0139 | ETN | DMEGC | DMxxxM10RT-B54HBT | 1762 | 1134 | 30 | 435/440/445/450 | A27T220I ind29 |
| NPA345-0134 | ETN | DMEGC | DMxxxM10RT-B60HST | 1950 | 1134 | 30 | 485/490/495/500 | A27T220I ind28 |
| NPA345-0135 | ETN | DMEGC | DMxxxM10RT-B60HBT | 1950 | 1134 | 30 | 485/490/495/500 | A27T220I ind28 |
| NPA345-0136 | ETN | DMEGC | DMxxxM10RT-B54HSW | 1762 | 1134 | 30 | 440/445/450 | A27T220I ind29 |
| NPA345-0137 | ETN | DMEGC | DMxxxM10RT-B54HBW | 1762 | 1134 | 30 | 440/445/450 | A27T220I ind29 |
| NPA345-0130 | ETN | DMEGC | DMxxxM10RT-G54HBW | 1762 | 1134 | 30 | 435/440/445/450 | A27T220I ind27 |
| NPA345-0131 | ETN | DMEGC | DMxxxM10RT-60HSW-V | 1950 | 1134 | 35 | 490/495/500 | A27T220I ind28 |
| NPA345-0132 | ETN | DMEGC | DMxxxM10RT-60HBW-V | 1950 | 1134 | 35 | 490/495/500 | A27T220I ind28 |
| NPA345-0133 | ETN | DMEGC | DMxxxM10RT-60HBB-V | 1950 | 1134 | 35 | 485/490/495/500 | A27T220I ind28 |
| NPA345-0127 | ETN | DMEGC | DMxxxM10RT-54HBW-V | 1762 | 1134 | 30 | 440/445/450 | A27T220I ind27 |
| NPA345-0128 | ETN | DMEGC | DMxxxM10RT-54HBB-V | 1762 | 1134 | 30 | 435/440/445/450 | A27T220I ind27 |
| NPA345-0129 | ETN | DMEGC | DMxxxM10RT-G54HSW | 1762 | 1134 | 30 | 435/440/445/450 | A27T220I ind27 |
| NPA345-0126 | ETN | DMEGC | DMxxxM10RT-54HSW-V | 1762 | 1134 | 30 | 440/445/450 | A27T220I ind27 |
| NPA345-0123 | ETN | DAS | DAS-DH108NA-xxx | 1722 | 1134 | 30 | 420/425/430/435/440 | A27T220I ind26 |
| NPA345-0124 | ETN | DAS | DAS-DH108ND-xxx | 1800 | 1134 | 30 | 435/440/445/450/455 | A27T220I ind26 |
| NPA345-0125 | ETN | DAS | DAS-DH120ND-xxx | 1994 | 1134 | 30 | 490/495/500/505/510 | A27T220I ind26 |
| NPA345-0121 | ETN | DAS | DAS-DH144NA-xxx | 2278 | 1134 | 30 | 565/570/575/580/585 | A27T220I ind26 |
| NPA345-0122 | ETN | DAS | DAS-DH144ND-xxx | 2382 | 1134 | 30 | 590/595/600/605/610/615 | A27T220I ind26 |
| NPA345-0119 | ETN | JNE | JLS120MxxxW | 1763 | 1040 | 35 | 360/365/370/375/380 | A27T220I ind25 |
| NPA345-0120 | ETN | JNE | JLS120MxxxW (SMALL) | 1755 | 1038 | 35 | 355/360/365/370/375 | A27T220I ind25 |
| NPA345-0118 | ETN | JNE | JLS108MxxxW | 1724 | 1134 | 30 | 390/395/400/405/410 | A27T220I ind25 |
| NPA345-0115 | ETN | DUONERGY | DN-BT108N-3-xxx | 1722 | 1134 | 30 | 425 | A27T220I ind24 |
| NPA345-0116 | ETN | DUONERGY | DN-BT132N-xxx | 2094 | 1134 | 30 | 500 | A27T220I ind24 |
| NPA345-0117 | ETN | DUONERGY | DN-BT120HJT-2-xxx | 1755 | 1038 | 30 | 375 | A27T220I ind24 |
| NPA345-0112 | ETN | JINKO | JKMxxxN-60HL4-V | 1906 | 1134 | 30 | 470/475/480/485/490 | A27T220I ind23 |
| NPA345-0113 | ETN | JINKO | JKMxxxM-54HL4-V | 1722 | 1134 | 30 | 400/405/410/415/420 | A27T220I ind23 |
| NPA345-0114 | ETN | JINKO | JKMxxxN-54HL4R-BDV | 1762 | 1134 | 30 | 420/425/430/435/440 | A27T220I ind23 |
| NPA345-0110 | ETN | JINKO | JKMxxxN-54HL4R-V | 1762 | 1134 | 30 | 425/430/435/440/445/450 | A27T220I ind23 |
| NPA345-0111 | ETN | JINKO | JKMxxxN-54HL4R-B | 1762 | 1134 | 30 | 425/430/435/440/445 | A27T220I ind23 |
| NPA345-0109 | ETN | LONGI | LR5-54HTH-xxxM Explorer | 1722 | 1134 | 30 | 420/425/430/435/440 | A27T220I ind22 |
| NPA345-0108 | ETN | LONGI | LR5-54HPB-xxxM | 1722 | 1134 | 30 | 400/405/410/415/420 | A27T220I ind21 |
| NPA345-0105 | ETN | LONGI | LR5-54HPH-xxxM | 1722 | 1134 | 30 | 405/410/415/420/425 | A27T220I ind21 |
| NPA345-0106 | ETN | LONGI | LR5-54HTH-xxxM Scientist | 1722 | 1134 | 30 | 440/445/450 | A27T220I ind21 |
| NPA345-0107 | ETN | LONGI | LR5-54HIBD-xxxM | 1722 | 1134 | 30 | 390/395/400/405/410/415 | A27T220I ind21 |
| NPA345-0103 | ETN | LONGI | LR5-72HTH-xxxM | 2278 | 1134 | 35 | 560/565/570/575/580 | A27T220I ind20 |
| NPA345-0104 | ETN | LONGI | LR5-72HBD-xxxM | 2278 | 1134 | 35 | 535/540/545/550/555 | A27T220I ind20 |
| NPA345-0099 | ETN | LONGI | LR5-54HABB-xxxM | 1722 | 1134 | 30 | 395/400/405/410/415 | A27T220I ind19 |
| NPA345-0100 | ETN | LONGI | LR5-54HTB-xxxM | 1722 | 1134 | 30 | 410/415/420/425/430 | A27T220I ind19 |
| NPA345-0101 | ETN | LONGI | LR5-66HPH-xxxM | 2094 | 1134 | 35 | 495/500/505/510/515 | A27T220I ind19 |
| NPA345-0102 | ETN | LONGI | LR5-72HPH-xxxM | 2278 | 1134 | 35 | 545/550/555/560/565 | A27T220I ind19 |
| NPA345-0098 | ETN | LONGI | LR5-54HABD-xxxM | 1722 | 1134 | 30 | 395/400/405/410/415/420 | A27T220I ind19 |
| NPA345-0097 | ETN | DUALSUN | FLASH DSxxx-108M10TB-03 | 1722 | 1134 | 30 | 410/415/420/425 | A27T220I ind18 |
| NPA345-0094 | ETN | TONGWEI | THxxxPMB7-46SCF | 1899 | 1096 | 30 | 420/425/430/435/440 | A27T220I ind16 |
| NPA345-0095 | ETN | TONGWEI | THxxxPMB7-44SCS | 1812 | 1096 | 30 | 405/410/415/420/425 | A27T220I ind16 |
| NPA345-0096 | ETN | TONGWEI | THxxxPMB7-44SCF | 1812 | 1096 | 30 | 400/405/410/415/420 | A27T220I ind16 |
| NPA345-0093 | ETN | TONGWEI | THxxxPMB7-46SCS | 1899 | 1096 | 30 | 425/430/435/440/445 | A27T220I ind16 |
| NPA345-0092 | ETN | RISEN | RSM40-8-xxxM | 1754 | 1096 | 30 | 390/395/400/405/410/415 | A27T220I ind15 |
| NPA345-0091 | ETN | DMEGC | DMxxxM10T-B54HBW | 1722 | 1134 | 30 | 415/420/425/430 | A27T220I ind14 |
| NPA345-0087 | ETN | LEAPTON | LP182*182-M-54-MH-xxxW | 1724 | 1134 | 30 | 400/405/410/415 | A27T220I ind13 |
| NPA345-0088 | ETN | DMEGC | DMxxxM10T-54HSW | 1722 | 1134 | 30 | 420/425/430/435 | A27T220I ind14 |
| NPA345-0089 | ETN | DMEGC | DMxxxM10T-54HBW | 1722 | 1134 | 30 | 420/425/430/435 | A27T220I ind14 |
| NPA345-0090 | ETN | DMEGC | DMxxxM10T-B54HSW | 1722 | 1134 | 30 | 415/420/425/430 | A27T220I ind14 |
| NPA345-0086 | ETN | AE | AExxxMD-144 | 2278 | 1133 | 30 | 530/535/540/545/550 | A27T220I ind12 |
| NPA345-0083 | ETN | DUALSUN | FLASH DSxxxM12-B320SBB7 | 1899 | 1096 | 30 | 420/425/430/435/440 | A27T220I ind11 |
| NPA345-0084 | ETN | AE | AExxxMD-108BS | 1721 | 1133 | 30 | 395/400/405/410/415 | A27T220I ind12 |
| NPA345-0085 | ETN | AE | AExxxMD-132 | 2094 | 1133 | 30 | 485/490/495/500/505 | A27T220I ind12 |
| NPA345-0079 | ETN | DUALSUN | FLASH DSxxx-108M10-02 | 1708 | 1134 | 30 | 395/400/405/410/415 | A27T220I ind11 |
| NPA345-0080 | ETN | DUALSUN | FLASH DSxxx-108M10B-02 | 1722 | 1134 | 30 | 395/400/405/410 | A27T220I ind11 |
| NPA345-0081 | ETN | DUALSUN | SPRING DSTIxxxM12-B320SBB7 | 1899 | 1096 | 30 | 420/425/430/435/440 | A27T220I ind11 |
| NPA345-0082 | ETN | DUALSUN | SPRING DSTNxxxM12-B320SBB7 | 1899 | 1096 | 30 | 420/425/430/435/440 | A27T220I ind11 |
| NPA345-0078 | ETN | DMEGC | DMxxxM10-54HSW-V | 1722 | 1134 | 30 | 395/400/405/410 | A27T220I ind10 |
| NPA345-0073 | ETN | DUONERGY | DN-BT120HJT-A-xxx | 1755 | 1038 | 30 | 375 | A27T220I ind09 |
| NPA345-0074 | ETN | DUONERGY | DN-BT120HJT-2-xxx | 1755 | 1038 | 30 | 375 | A27T220I ind09 |
| NPA345-0075 | ETN | DUONERGY | DN-BT108N-2-xxx | 1722 | 1134 | 30 | 410/415/420 | A27T220I ind09 |
| NPA345-0076 | ETN | DMEGC | DMxxxM6-60HSW | 1755 | 1038 | 35 | 370/375/380/385 | A27T220I ind10 |
| NPA345-0077 | ETN | DMEGC | DMxxxM10-54HBW-V | 1722 | 1134 | 30 | 400/405/410/415 | A27T220I ind10 |
| NPA345-0071 | ETN | DUONERGY | DN-BT108N-xxx | 1722 | 1134 | 30 | 400/405/410/415/420 | A27T220I ind09 |
| NPA345-0072 | ETN | DUONERGY | DN-BT120N-xxx | 1773 | 1046 | 30 | 370/375/380/385/390 | A27T220I ind09 |
| NPA345-0070 | ETN | QCELLS | Q.PEAK DUO M G11 xxx | 1692 | 1134 | 30 | 390/395/400/405/410 | A27T220I ind08 |
| NPA345-0068 | ETN | LONGI | LR5-72HIH-xxxM | 2278 | 1134 | 35 | 535/540/545/550 | A27T220I ind07 |
| NPA345-0069 | ETN | LONGI | LR5-72HIBD-xxxM | 2278 | 1134 | 35 | 530/535/540/545/550 | A27T220I ind07 |
| NPA345-0064 | ETN | CANADIAN | CS6R-xxxMS | 1722 | 1134 | 30 | 395/400/405/410/415/420 | A27T220I ind06 |
| NPA345-0065 | ETN | CANADIAN | CS3L-xxxP | 1765 | 1048 | 35 | 335/340/345/350/355/360 | A27T220I ind06 |
| NPA345-0066 | ETN | LONGI | LR5-54HIB-xxxM | 1722 | 1134 | 30 | 395/400/405/410 | A27T220I ind07 |
| NPA345-0067 | ETN | LONGI | LR5-54HIH-xxxM | 1722 | 1134 | 30 | 400/405/410/415 | A27T220I ind07 |
| NPA345-0063 | ETN | CANADIAN | CS6R-xxxH-AG | 1722 | 1134 | 30 | 415/420/425/430/435/440 | A27T220I ind06 |
| NPA345-0059 | ETN | TRINA | TSM-xxxDE09R.05 | 1762 | 1134 | 30 | 405/410/415/420/425 | A27T220I ind04 |
| NPA345-0060 | ETN | TRINA | TSM-xxxDEG18MC.20 (II) | 2187 | 1102 | 35 | 490/495/500/505 | A27T220I ind04 |
| NPA345-0061 | ETN | JINKO | JKMxxxN-54HL4-V | 1722 | 1134 | 30 | 410/415/420/425/430 | A27T220I ind05 |
| NPA345-0062 | ETN | JINKO | JKMxxxN-54HL4R-V | 1762 | 1134 | 30 | 425/430/435/440/445 | A27T220I ind05 |
| NPA345-0056 | ETN | TRINA | TSM-xxxNEG9.28 | 1770 | 1096 | 30 | 400/405/410/415/420/425 | A27T220I ind04 |
| NPA345-0057 | ETN | TRINA | TSM-xxxNEG9R.28 | 1762 | 1134 | 30 | 415/420/425/430/435/440 | A27T220I ind04 |
| NPA345-0058 | ETN | TRINA | TSM-xxxDE09R.08 | 1762 | 1134 | 30 | 415/420/425/430/435 | A27T220I ind04 |
| NPA345-0053 | ETN | TALESUN | TP7F54M-xxx | 1722 | 1134 | 30 | 395/400/405/410/415 | A27T220I ind02 |
| NPA345-0054 | ETN | TALESUN | TP7F54M(H)-xxx | 1722 | 1134 | 30 | 395/400/405/410/415 | A27T220I ind02 |
| NPA345-0050 | ETN | DMEGC | DMxxxM6-72HSW | 2094 | 1038 | 35 | 445/450/455/460 | A27T220I ind01 |
| NPA345-0051 | ETN | TALESUN | TP6L60M-xxx | 1755 | 1038 | 35 | 360/365/370/375/380 | A27T220I ind02 |
| NPA345-0052 | ETN | TALESUN | TP6L60M(H)-xxx | 1755 | 1038 | 35 | 360/365/370/375/380 | A27T220I ind02 |
| NPA345-0045 | ETN | VOLTEC | Tarka 126 VSMD | 1835 | 1042 | 35 | 385/390/395 | A27T220I ind0 |
| NPA345-0046 | ETN | DMEGC | DMxxxM6-60HBW | 1755 | 1038 | 35 | 370/375/380/385 | A27T220I ind01 |
| NPA345-0047 | ETN | DMEGC | DMxxxM10-B54HBT | 1722 | 1134 | 30 | 395/400/405 | A27T220I ind01 |
| NPA345-0048 | ETN | DMEGC | DMxxxM10-B54HST | 1722 | 1134 | 30 | 395/400/405 | A27T220I ind01 |
| NPA345-0049 | ETN | DMEGC | DMxxxM10-54HBW-V | 1708 | 1134 | 30 | 395/400/405/410 | A27T220I ind01 |
| NPA345-0041 | ETN | REC | RECxxxTP2 | 1675 | 997 | 38 | 275/280/285/290/295/300 | A27T220I ind0 |
| NPA345-0042 | ETN | SUNPOWER | SPR-E20-xxx-COM | 2067 | 1046 | 46 | 435/440/445 | A27T220I ind0 |
| NPA345-0043 | ETN | TRINA | TSM-xxxPE06H | 1698 | 1004 | 35 | 270/275/280/285/290/295/300 | A27T220I ind0 |
| NPA345-0044 | ETN | VOLTEC | TARKA 120HC VSMS | 1685 | 1000 | 42 | 315/320/325 | A27T220I ind0 |
| NPA345-0037 | ETN | JINKO | JKMxxxPP-60 | 1650 | 992 | 35 | 265/270/275/280/285 | 010T180V ind0 |
| NPA345-0038 | ETN | JINKO | JKMxxxPP-60 | 1650 | 992 | 35 | 265/270/275/280/285 | A27T220I ind0 |
| NPA345-0039 | ETN | LG | LGxxxQ1C-V5 | 1700 | 1016 | 40 | 330/335/340 | A27T220I ind0 |
| NPA345-0040 | ETN | QCELLS | Q.PEAK DUO ML G9 xxx | 1840 | 1030 | 32 | 370/375/380/385/390 | A27T220I ind0 |
| NPA345-0033 | ETN | JA | JAM72S20-xxx/MR | 2112 | 1052 | 35 | 445/450/455/460/465/470 | 010T180V ind15 |
| NPA345-0034 | ETN | JA | JAM54S30-xxx/MR | 1722 | 1134 | 30 | 390/395/400/405/410/415 | 010T180V ind15 |
| NPA345-0035 | ETN | GCL | GCL-xxxM8/60H | 1755 | 1038 | 35 | 375/380/385 | A27T220I ind0 |
| NPA345-0036 | ETN | HYUNDAI | HiE-SxxxVG | 1719 | 1140 | 35 | 390/395/400/405/410 | A27T220I ind0 |
| NPA345-0029 | ETN | TRINA | TSM-xxxDE09.05 | 1754 | 1096 | 30 | 380/385/390/395/400 | 010T180V ind14 |
| NPA345-0030 | ETN | TRINA | TSM-xxxDE09.08 | 1754 | 1096 | 30 | 390/395/400/405 | 010T180V ind14 |
| NPA345-0031 | ETN | JA | JAM60S20-xxx/MR | 1769 | 1052 | 35 | 365/370/375/380/385/390 | 010T180V ind15 |
| NPA345-0032 | ETN | JA | JAM60S20-xxx/MR/1500V | 1776 | 1052 | 35 | 365/370/375/380/385/390 | 010T180V ind15 |
| NPA345-0026 | ETN | DMEGC | DMxxxM10-54HSW-V | 1708 | 1134 | 30 | 395/400/405/410 | 010T180V ind12 |
| NPA345-0027 | ETN | ZNSHINE | ZXP6-60-xxx/P | 1650 | 992 | 35 | 270/275/280/285/290/295 | 010T180V ind13 |
| NPA345-0028 | ETN | TRINA | TSM-xxxDE08M.08 (II) | 1763 | 1040 | 35 | 360/365/370/375/380 | 010T180V ind14 |
| NPA345-0022 | ETN | LONGI | LR4-72HIH-xxxM | 2094 | 1038 | 35 | 425/430/435/440/445/450/455 | 010T180V ind11 |
| NPA345-0023 | ETN | LONGI | LR4-72HBD-xxxM | 2094 | 1038 | 35 | 425/430/435/440/445/450/455 | 010T180V ind11 |
| NPA345-0024 | ETN | DMEGC | DMxxxM6-60HSW-V | 1755 | 1038 | 35 | 370/375/380 | 010T180V ind12 |
| NPA345-0025 | ETN | DMEGC | DMxxxM6-60HBW-V | 1755 | 1038 | 35 | 375/380 | 010T180V ind12 |
| NPA345-0018 | ETN | JINKO | JKMxxxM-72HL4-V | 2274 | 1134 | 35 | 545/550 | 010T180V ind09 |
| NPA345-0019 | ETN | LONGI | LR4-60HPH-xxxM | 1755 | 1038 | 35 | 350/355/360/365/370/375/380 | 010T180V ind11 |
| NPA345-0020 | ETN | LONGI | LR4-60HIH-xxxM | 1755 | 1038 | 35 | 350/355/360/365/370/375/380 | 010T180V ind11 |
| NPA345-0021 | ETN | LONGI | LR4-72HPH-xxxM | 2115 | 1052 | 35 | 420/425/430/435/440 | 010T180V ind11 |
| NPA345-0014 | ETN | JINKO | JKMxxxM-60H-V | 1684 | 1002 | 30 | 325/330/335/340 | 010T180V ind09 |
| NPA345-0015 | ETN | JINKO | JKMxxxM-60HLM-V | 1756 | 1039 | 30 | 355/360/365/370/375 | 010T180V ind09 |
| NPA345-0016 | ETN | JINKO | JKMxxxM-72HLM-V | 2096 | 1039 | 35 | 435/440/445/450/455 | 010T180V ind09 |
| NPA345-0017 | ETN | JINKO | JKMxxxM-60HL4-V | 1903 | 1134 | 30 | 455/460 | 010T180V ind09 |
| NPA345-0010 | ETN | TRINA | TSM-xxxDE06M.08 (II) | 1690 | 996 | 35 | 325/330/335/340 | 010T180V ind06 |
| NPA345-0011 | ETN | JINKO | JKMxxxM-60 | 1665 | 1002 | 30 | 315/320/325/330/335 | 010T180V ind07 |
| NPA345-0012 | ETN | JINKO | JKMxxxM-60H | 1684 | 1002 | 35 | 325/330/335/340/345 | 010T180V ind07 |
| NPA345-0013 | ETN | DMEGC | DMxxxG1-60HSW | 1684 | 1002 | 35 | 325/330/335/340 | 010T180V ind08 |
| NPA345-0006 | ETN | AXITEC | AC-xxxMH/120S | 1684 | 1002 | 35 | 320/325/330 | 010T180V ind02 |
| NPA345-0007 | ETN | REC | RECxxxTP2M | 1675 | 997 | 38 | 300/305/310/315/320/325/330 | 010T180V ind04 |
| NPA345-0008 | ETN | LONGI | LR4-60HBD-xxxM | 1755 | 1038 | 30 | 350/355/360/365/370/375 | 010T180V ind05 |
| NPA345-0009 | ETN | TRINA | TSM-xxxDE06M.08 (II) | 1698 | 1004 | 35 | 330/335/340 | 010T180V ind06 |
| NPA345-0002 | ETN | JA | JAM60S10-xxx/PR | 1689 | 996 | 35 | 320/325/330/335/340 | 010T180V ind01 |
| NPA345-0003 | ETN | JA | JAM60S10-xxx/MR | 1689 | 996 | 35 | 325/330/335 | 010T180V ind01 |
| NPA345-0004 | ETN | JA | JAP60S09-xxx/SC | 1657 | 996 | 35 | 270/275/280 | 010T180V ind01 |
| NPA345-0005 | ETN | JA | JAP60S10-xxx/SC | 1689 | 996 | 35 | 275/280/285/290 | 010T180V ind01 |
| NPA345-0001 | ETN | JA | JAM60S09-xxx/PR | 1657 | 996 | 35 | 310/315/320/325 | 010T180V ind01 |
| NPA345-0055 | ETN | TONGWEI | THxxxPMB7-44SCS | 1812 | 1096 | 30 | 405/410/415/420/425 | A27T220I ind03 |
RÉACTIVITÉ ET DISPONIBILITÉ
DOCUMENTS TECHNIQUES
FORMATION ET ASSISTANCE 1ER CHANTIERS
L’accompagnement de nos clients au cœur de notre mission
Chez Dome Solar, votre satisfaction est notre priorité. Nous nous engageons à rendre chaque interaction aussi agréable et simple que possible en vous accompagnant à chaque étape de votre parcours.
NPA 3.45
