Utilisation

Toiture neuve ou rénovation, totale ou partielle

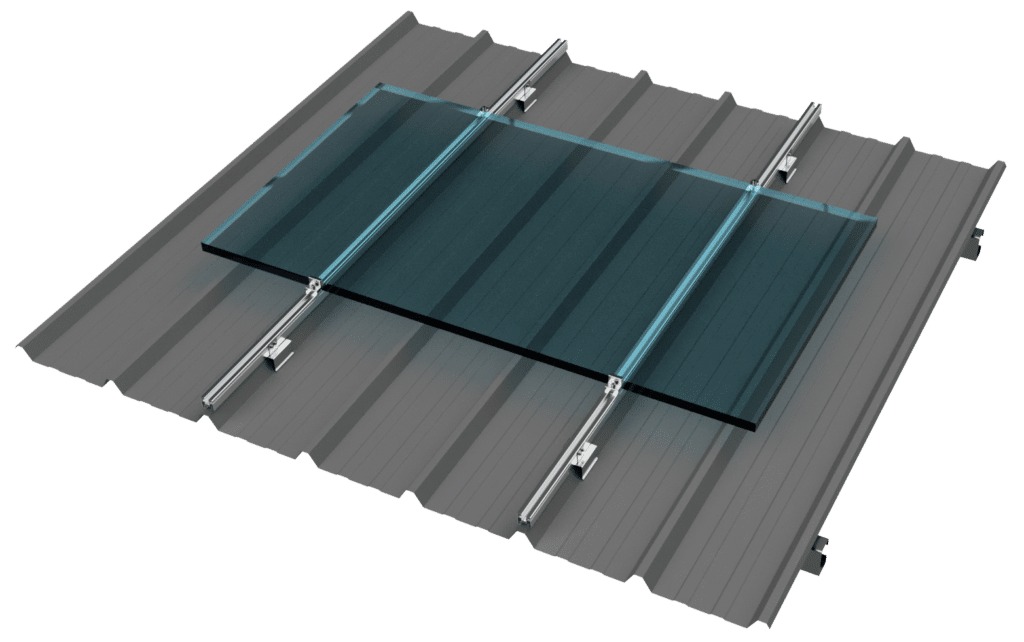

Couverture

Bac acier hauteur d’onde entre 33 et 45 mm, tous profils de forme trapézoïdale, épaisseur minimum 63/100
Bac ASTRON LPR 1000
Orientation du module

Paysage
Poids du système

2 kg/m²
Structure porteuse

Entraxes pannes jusqu'à 2.10 m (bois ou acier)

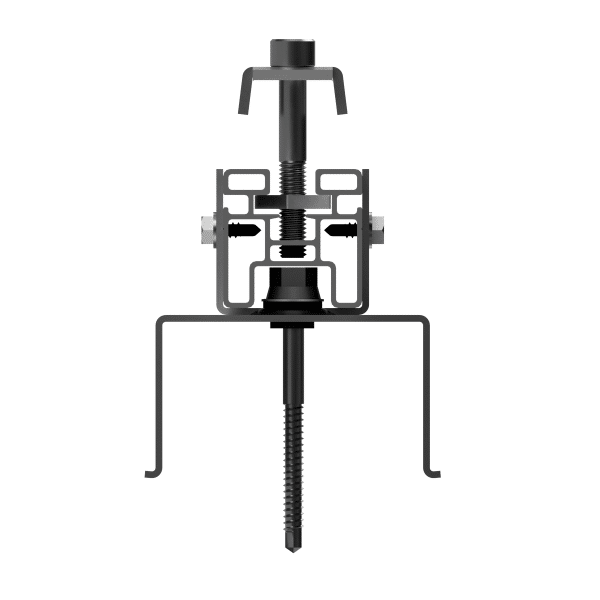

Composants du système

Platines inox 304L ou 316L (suivant environnement)
Rails aluminium 6060 T6 longueur sur mesure
Brides inox 304L ou 316L (suivant environnement), assemblées en usine
Brides centrales assurant la mise à la terre au serrage
Vis Zamac pour fixation des platines
Option

Connecteur Terre Module (CTM) aluminium 6060
ETN - Enquête de Technologie Nouvelle
Made in France Made in France
ID Evaluations techniques Fabricant Nom du module Longueur Largeur Épaisseur Classe de puissance (WC) Référence
S360M-0089 ETN TONGWEI TNC 2.0 TWMNH-48HDxxx 1762 1134 30 445/450/455/460/465 A27T2208 ind11
S360M-0080 ETN JINKO JKMxxxN-48HL4M-BDV 1762 1134 30 445/450/455/460/465/470 A27T2208 ind08
S360M-0081 ETN JINKO JKMxxxN-48HL4M-DB 1762 1134 30 450/455/460/465 A27T2208 ind08
S360M-0082 ETN JINKO JKMxxxN-48HL4M-DV 1762 1134 30 450/455/460/465/470 A27T2208 ind08
S360M-0083 ETN JINKO JKMxxxN-54HL4M-BDV 1961 1134 30 495/500/505/510/515/520/525 A27T2208 ind08
S360M-0084 ETN JINKO JKMxxxN-60HL4-V 1906 1134 30 475/480/485/490/495/500 A27T2208 ind08
S360M-0085 ETN JINKO JKMxxxM-60HL4-V 1903 1134 30 450/455/460/465/470 A27T2208 ind08
S360M-0086 ETN LONGI LR8-48HGD-xxxM 1762 1134 30 430/435/440/445/450/455 A27T2208 ind10
S360M-0087 ETN LONGI LR7-54HVH-xxxM 1800 1134 30 475/480/485/490 A27T2208 ind10
S360M-0088 ETN TONGWEI TWMNH-48HDxxx 1762 1134 30 435/440/445/450/455 A27T2208 ind11
S360M-0079 ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 435/440/445/450/455/460 A27T2208 ind08
S360M-0078 ETN DMEGC DMxxxM10RT-B54HSW 1762 1134 30 445/450/455/460 A27T2208 ind07
S360M-0077 ETN DMEGC DMxxxM10RT-54HBW-V 1762 1134 30 440/445/450 A27T2208 ind05
S360M-0076 ETN DMEGC DMxxxM10RT-54HSW-V 1762 1134 30 440/445/450 A27T2208 ind05
S360M-0075 ETN JINKO JKMxxxN-54HL4R-BDV 1762 1134 30 420/425/430/435/440 A27T2208 ind04
S360M-0074 ETN JINKO JKMxxxM-54HL4-V 1722 1134 30 400/405/410/415/420 A27T2208 ind04
S360M-0073 ETN JINKO JKMxxxN-60HL4-V 1906 1134 30 470/475/480/485/490 A27T2208 ind04
S360M-0072 ETN JINKO JKMxxxN-54HL4R-B 1762 1134 30 425/430/435/440/445 A27T2208 ind04
S360M-0071 ETN JINKO JKMxxxN-54HL4R-V 1762 1134 30 425/430/435/440/445/450 A27T2208 ind04
S360M-0070 ETN TRINA TSM-xxxNEG9R.28 1762 1134 30 425/430/435/440/445/450 A27T2208 ind03
S360M-0068 ETN JA JAM54D40-xxx/LB 1762 1134 30 430/435/440/445/450 A27T2208 ind02
S360M-0069 ETN JA JAM54D41-xxx/LB 1762 1134 30 430/435/440 A27T2208 ind02
S360M-0067 ETN JA JAM54S31-xxx/LR 1762 1134 30 415/420 A27T2208 ind02
S360M-0066 ETN JA JAM54S30-xxx/LR 1762 1134 30 415/420/425/430/435 A27T2208 ind02
S360M-0065 ETN LONGI LR4-60HIH-xxxM 1755 1038 30 365/370/375/380 A27T2208 ind01
S360M-0064 ETN TRINA TSM-xxxDE09.08 1754 1096 30 390/395/400/405 A27T2208 ind0
S360M-0063 ETN SUNPOWER SPR-P3-xxx-COM-1500 2066 998 35 405/410/415/420 A27T2208 ind0
S360M-0058 ETN DMEGC DMxxxG1-60HSW 1684 1002 35 325/330/335/340 010T180Y ind06
S360M-0059 ETN LONGI LR4-60HPH-xxxM 1755 1038 35 350/355/360/365/370/375 010T180Y ind07
S360M-0060 ETN LONGI LR4-60HBD-xxxM 1755 1038 30 350/355/360/365/370/375 010T180Y ind07
S360M-0061 ETN GCL GCL-xxxM8/60H 1755 1038 35 375/380/385 A27T2208 ind0
S360M-0062 ETN GCL GCL-xxxM8/60H 1766 1048 35 375/380/385 A27T2208 ind0
S360M-0057 ETN SUNPOWER SPR-MAX3-xxx-COM 1690 1046 40 390/395/400 010T180Y ind05
S360M-0056 ETN JA JAM60S10-xxx/MR 1689 996 35 325/330/335 010T180Y ind04
S360M-0055 ETN JA JAM60S10-xxx/PR 1689 996 35 320/325/330/335/340 010T180Y ind04
S360M-0054 ETN VOLTEC TARKA 120HC VSMS 1685 1000 42 315/320/325 010T180Y ind03
S360M-0053 ETN QCELLS Q.PEAK DUO G7 xxx 1685 1000 32 325/330/335 010T180Y ind02
S360M-0052 ETN QCELLS Q.PEAK DUO BLK G6 xxx 1740 1030 32 330/335/340/345 010T180Y ind02
S360M-0051 ETN QCELLS Q.PEAK DUO G6 xxx 1740 1030 32 340/345 010T180Y ind02
S360M-0050 ETN QCELLS Q.PEAK DUO BLK G5 xxx 1685 1000 32 310/315/320/325 010T180Y ind02
S360M-0049 ETN QCELLS Q.PEAK DUO G5 xxx 1685 1000 32 315/320/325/330/335 010T180Y ind02
S360M-0046 ETN QCELLS Q.PEAK BLK G4.1 xxx 1670 1000 32 290/295/300/305 010T180Y ind01
S360M-0047 ETN QCELLS Q.PEAK G4.4 xxx 1670 1000 32 295/300/305/310/315 010T180Y ind01
S360M-0048 ETN QCELLS Q.PEAK G5.1 xxx 1670 1000 32 305/310/315 010T180Y ind01
S360M-0045 ETN QCELLS Q.PEAK G4.1 xxx 1670 1000 32 300/305/310/315/320 010T180Y ind01
S360M-0044 ETN QCELLS Q.PLUS G4.3 xxx 1670 1000 32 270/275/280/285/290 010T180Y ind01
S360M-0043 ETN YINGLI YLxxxP-29b 1640 990 35 200/205/210/215/220/225/230/235/240/245/250/255/260/265 010T180Y ind0
S360M-0042 ETN VOLTEC Tarka 60 VSMS 1660 998 42 270/275/280/285/290/295/300 010T180Y ind0
S360M-0041 ETN VOLTEC Tarka 60 VSPS 1660 998 42 260/265/270/275 010T180Y ind0
S360M-0040 ETN VMH ENERGIES xxx-6-60-P 1648 992 40 270/275/280 010T180Y ind0
S360M-0039 ETN UPSOLAR 60-UP-MxxxP 1640 992 40 225/230/235/240/245/250/255/260/265/270/275 010T180Y ind0
S360M-0038 ETN TRINA TSM-xxxPD05 1650 992 35 255/260/265 010T180Y ind0
S360M-0037 ETN TALESUN TP660P-xxx 1640 990 35 255/260/265/270/275/280/285 010T180Y ind0
S360M-0036 ETN SYSTOVI V-SYS PRO PS19xxxN14 16475 9875 35 285/290/295/300 010T180Y ind0
S360M-0035 ETN SUNPOWER SPR-X21-460-COM 2067 1046 46 460 010T180Y ind0
S360M-0032 ETN SUNPOWER SPR-X21-xxx-BLK 1559 1046 46 335 010T180Y ind0
S360M-0033 ETN SUNPOWER SPR-X22-360-COM 1559 1046 46 360 010T180Y ind0
S360M-0034 ETN SUNPOWER SPR-E20-xxx-COM 2067 1046 46 435 010T180Y ind0
S360M-0031 ETN SUNPOWER SPR-X21-xxx 1559 1046 46 335/340/345 010T180Y ind0
S360M-0030 ETN SUNPOWER SPR-X20-xxx 1559 1046 46 327 010T180Y ind0
S360M-0029 ETN SUNPOWER SPR-E20-xxx-COM 1559 1046 46 327 010T180Y ind0
S360M-0028 ETN SUNPOWER SPR-E19-xxx-COM 1559 1046 46 310 010T180Y ind0
S360M-0027 ETN SUNPOWER SPR-E20-xxx 1559 1046 46 327 010T180Y ind0
S360M-0023 ETN SOLARWORLD Sunmodule Plus SWxxxP 1675 1001 33 200/205/210/215/220/225/230/235/240/245/250/255/260/265/270/275/280/285/290/295/300 010T180Y ind0
S360M-0024 ETN SOLVIS SV60 1640 992 35 270/275/280/285 010T180Y ind0
S360M-0026 ETN SUNPOWER SPR-E19-xxx 1559 1046 46 320 010T180Y ind0
S360M-0025 ETN SOLVIS SV60 1640 992 40 270/275/280/285 010T180Y ind0
S360M-0022 ETN SOLARWATT Vision 60M Style 1680 990 40 260/265/270/275 010T180Y ind0
S360M-0021 ETN SOLARWATT Vision 60P Style 1680 990 40 250/255/260/265/270/275/280/285 010T180Y ind0
S360M-0020 ETN SOLARWATT Vision 60P 1680 990 40 250/255/260 010T180Y ind0
S360M-0019 ETN SOLARWATT Blue 60Pxxx 1680 990 40 250/255/260/265 010T180Y ind0
S360M-0018 ETN RECOM SILLIA 60Pxxx 1660 990 40 250/255/260/265/270 010T180Y ind0
S360M-0017 ETN QCELLS Q.PLUS G4.3 xxx 1670 1000 32 270/275/280 010T180Y ind0
S360M-0016 ETN QCELLS Q.PLUS BFR G4.1 xxx 1670 1000 32 270/275/280/285 010T180Y ind0
S360M-0013 ETN PHOTOWATT PW2350F 1685 993 40 240/245/250/255 010T180Y ind0
S360M-0014 ETN PHOTOWATT PW2450F 1685 993 40 260/265/270/275/280 010T180Y ind0
S360M-0015 ETN PHOTOWATT PW2500F 1685 993 40 270/275/280/285/290 010T180Y ind0
S360M-0012 ETN CSUN CSUNxxx-60M 1640 990 35 275/280/285/290/295 010T180Y ind0
S360M-0011 ETN CSUN CSUNxxx-60P 1640 990 35 230/235/240/245/250/255/260/265/270/275 010T180Y ind0
S360M-0010 ETN CANADIAN CS6P-xxxP 1638 982 40 250/255/260/265/270 010T180Y ind0
S360M-0009 ETN BISOL BMU-xxx 1649 991 40 250/255/260/265/270 010T180Y ind0
S360M-0008 ETN BENQ-AUO PM060MB2_xxx 1640 992 40 275/280/285/290/295/300/305/310 010T180Y ind0
S360M-0007 ETN BENQ-AUO PM060PW1_xxx 1640 992 40 250/255/260/265/270 010T180Y ind0
S360M-0006 ETN BENQ-AUO PM096B00_xxx 1559 1046 46 325/330/335 010T180Y ind0
S360M-0005 ETN BENQ-AUO PM060MW2_xxx 1640 992 40 275/280/285/290/295/300/305/310 010T180Y ind0
S360M-0001 ETN BENQ-AUO PM060PW0_xxx 1640 992 40 250/255/260/265 010T180Y ind0
S360M-0004 ETN BENQ-AUO PM060PW0_xxx 1640 992 40 250/255/260/265 010T180Y ind0
S360M-0003 ETN BENQ-AUO PM096B00_xxx 1559 1046 46 325/330/335 010T180Y ind0
S360M-0002 ETN BENQ-AUO PM060MW2_xxx 1640 992 40 275/280/285 010T180Y ind0
