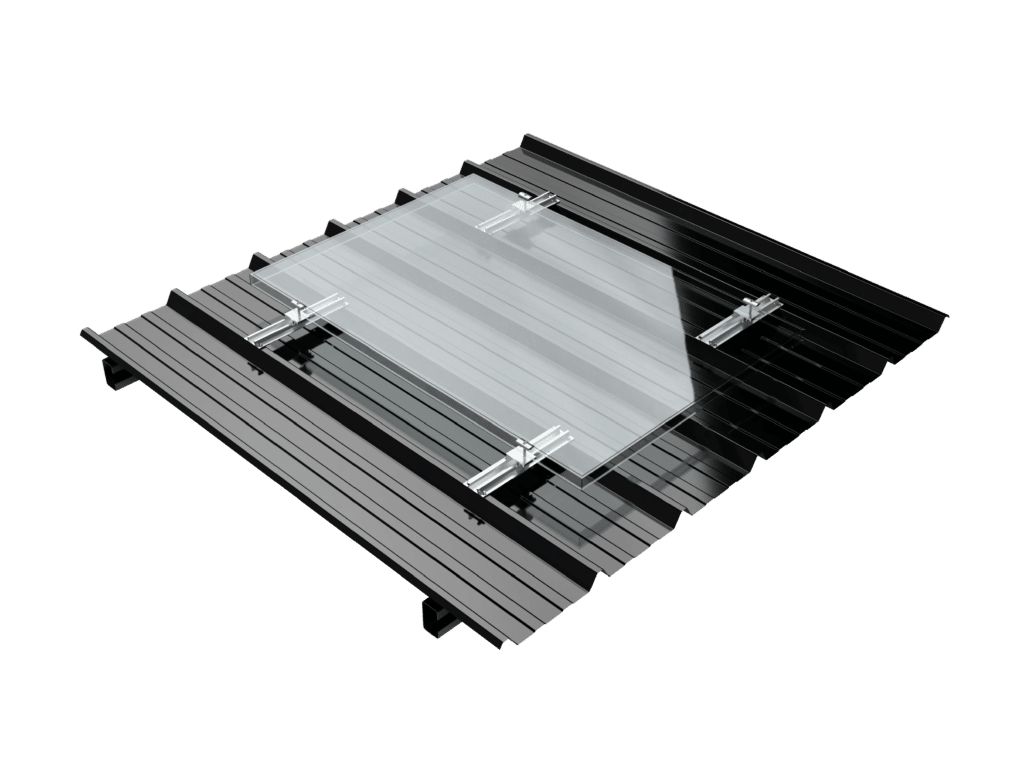

UTILISATION

Toiture neuve ou rénovation, totale ou partielle
COUVERTURE

Bac acier
ORIENTATION DU MODULE

Portrait
POIDS DU SYSTEME

< 1 kg/m²
STRUCTURE PORTEUSE

Charpente métallique ou bois
COMPOSANTS DU SYSTÈME

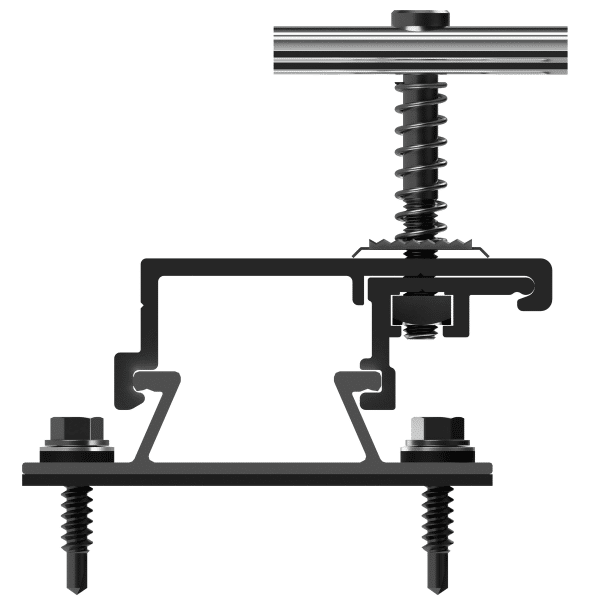

Rail pré-percé aluminium 6060 + joint EPDM (longueur du rail
adaptable sur tous types de bacs secs)
Fixation universelle (MALT modules incluse) et fixation
extérieure de finition aluminium 6060/inox
Connecteur Terre Rail (CTR) aluminium 6060
Connecteur Terre Module (CTM) aluminium 6060
Vis de couture acier
OPTION

Collier passe-câble polyamide
ETN - Enquête de Technologie Nouvelle
Made in France Made in France
Compatibilité avec la couverture : bac sec

BACACIER - COVEO 3.45
BACACIER - COVEO 4.35
BACACIER - COVEO 4.40
JORISIDE - PML 45.333.1000 CS
JORISIDE - PML 40.250.1000 CS
MONOPANEL - COBACIER 1003
ID Evaluations techniques Fabricant Nom du module Longueur Largeur Épaisseur Classe de puissance (WC) Référence
RB-0052 ETN LONGI LR7-72HVD-xxxM 2382 1134 30 635/640/645 L.24.08227av1
RB-0051 ETN LONGI LR7-72HVH-xxxM 2382 1134 30 635/640/645/650 L.24.08227av1
RB-0050 ETN LONGI LR7-54HVD-xxxM 1800 1134 30 475/480/485/490/495/500 L.24.08227av1
RB-0049 ETN LONGI LR7-54HVH-xxxM 1800 1134 30 475/480/485/490 L.24.08227av1
RB-0048 ETN LONGI LR8-48HGD-xxxM 1762 1134 30 430/435/440/445/450/455 L.24.08227av1
RB-0047 ETN JINKO JKMxxxN-54HL4R(-V) 1762 1134 30 430/435/440/445/450 L.24.08227av1
RB-0046 ETN DMEGC DMxxxM10RT-54HSW/HBW(-V) 1762 1134 30 445/450/455/460/465 L.24.08227av1
RB-0045 ETN VOLTEC TARKA 126 VSMS 1835 1042 35 385/390/395 L.20.05086av4
RB-0044 ETN SYSTOVI SYSxxxDA007 1762 1134 30 435/440/445 L.20.05086av4
RB-0043 ETN CANADIAN CS6R-xxxMS 1722 1134 30 395/400/405/410/415/420 L.20.05086av4
RB-0042 ETN CANADIAN CS6W-xxxT 2278 1134 30 560/565/570/575/580/585 L.20.05086av3
RB-0041 ETN CANADIAN CS6R-xxxT 1722 1134 30 420/425/430/435/440 L.20.05086av3
RB-0040 ETN SYSTOVI OPTYMO PRO xxx White 17305 11455 40 400/405/410/415 L.20.05086av2
RB-0039 ETN SYSTOVI OPTYMO PRO xxx Black 17305 11455 40 375/380/385/390/395/400 L.20.05086av2
RB-0038 ETN HAREON HR-xxx-24/Aa 1580 808 45 180/185/190/195/200/205 L.20.05086av2
RB-0037 ETN DMEGC DMHxxx7P6-120SW 1675 992 40 290/295/300/305 L.20.05086av2
RB-0036 ETN DMEGC DMxxxG1-60HSW 1684 1002 35 330/335/340/345 L.20.05086av2
RB-0035 ETN SUNPOWER SPR-P3-xxx-COM-1500 2066 998 35 405/410/415/420 L.20.05086av1
RB-0034 ETN SUNEKA SKAxxxM72-WN 1580 808 35 185/190 L.20.05086av1
RB-0032 ETN YINGLI YLxxxD-30b (-1500V) 1665 1002 35 320/325/330/335 L.20.05086
RB-0031 ETN VOLTEC TARKA 120HC VSMS 1685 1000 42 320/325/330 L.20.05086
RB-0030 ETN TRINA TSM-xxxDEG15MC.20 (II) 2031 1011 30 390/395/400/405/410 L.20.05086
RB-0029 ETN TRINA TSM-xxxPE06H 1650 996 35 285/290/295/300 L.20.05086
RB-0028 ETN TRINA TSM-xxxDE15M (II) 2015 996 35 390/395/400/405/410/415 L.20.05086
RB-0027 ETN TRINA TSM-xxxDE06M.08 (II) 1690 996 35 325/330/335/340 L.20.05086
RB-0026 ETN TRINA TSM-xxxDD06M05 (II) 1690 996 35 310/315/320/325/330/335 L.20.05086
RB-0025 ETN TALESUN TP660M-xxx 1665 1002 30 315/320/325/330 L.20.05086
RB-0024 ETN TALESUN TP660P-xxx 1665 1002 35 275/280/285/290/295 L.20.05086
RB-0023 ETN TALESUN TD6G60M-xxx 1705 1011 30 320/325/330/335/340 L.20.05086
RB-0022 ETN SYSTOVI V-SYS PRO PS75xxxN17 16635 10005 35 315/320/325/330 L.20.05086
RB-0021 ETN SYSTOVI V-SYS PRO PS73xxxN07 16635 10005 35 300/305/310/315/320/325/330 L.20.05086
RB-0020 ETN SYSTOVI V-SYS PRO PS19xxxN14 16475 9875 35 300/305/310/315/320 L.20.05086
RB-0019 ETN SYSTOVI V-SYS PRO PS18xxxN07 16475 9875 35 300/305/310 L.20.05086
RB-0018 ETN QCELLS Q.PEAK DUO G8+ xxx 1740 1030 32 340/345/350/355/360 L.20.05086
RB-0017 ETN QCELLS Q.PEAK DUO G8 xxx 1740 1030 32 340/345/350/355/360 L.20.05086
RB-0016 ETN QCELLS Q.PEAK DUO G6+ xxx 1740 1030 32 345/350/355 L.20.05086
RB-0014 ETN QCELLS Q.PEAK DUO ML G9+ xxx 1840 1030 32 375/380/385/390/395 L.20.05086
RB-0011 ETN QCELLS Q.PEAK DUO BLK G8 xxx 1740 1030 32 335/340/345/350 L.20.05086
RB-0012 ETN QCELLS Q.PEAK DUO BLK G8+ xxx 1740 1030 32 335/340/345/350 L.20.05086
RB-0013 ETN QCELLS Q.PEAK DUO ML G9 xxx 1840 1030 32 375/380/385/390/395 L.20.05086
RB-0015 ETN QCELLS Q.PEAK DUO G6 xxx 1740 1030 32 340/345/350/355 L.20.05086
RB-0010 ETN QCELLS Q.PEAK DUO BLK G6+ xxx 1740 1030 32 330/335/340/345 L.20.05086
RB-0009 ETN QCELLS Q.PEAK DUO BLK G6 xxx 1740 1030 32 330/335/340/345 L.20.05086
RB-0008 ETN QCELLS Q.PEAK DUO BLK ML G9+ xxx 1840 1030 32 365/370/375/380/385 L.20.05086
RB-0007 ETN QCELLS Q.PEAK DUO BLK ML G9 xxx 1840 1030 32 365/370/375/380/385 L.20.05086
RB-0006 ETN LONGI LR4-60HPB-xxxM 1755 1038 35 345/350/355/360/365/370 L.20.05086
RB-0005 ETN LONGI LR4-60HBD-xxxM 1755 1038 35 350/355/360/365/370/375/380 L.20.05086
RB-0004 ETN LONGI LR4-60HPH-xxxM 1755 1038 35 350/355/360/365/370/375/380 L.20.05086
RB-0003 ETN JINKO JKMxxxM-60H(-V) 1684 1002 35 325/330/335/340/345 L.20.05086
RB-0002 ETN HYUNDAI HiE-SxxxSI 1942 1069 40 410/415/420 L.20.05086
RB-0001 ETN HYUNDAI HiE-SxxxSG 1622 1068 35 340/345/350 L.20.05086

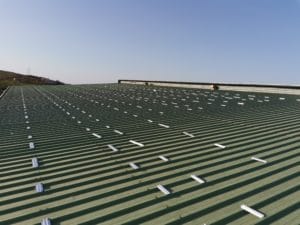

Installations photovoltaïques
